Introduction to PLC Control System of Fully Automatic Gummy Production Line

Introduction to the PLC Control System of a Fully Automatic Gummy Production Line

Detailed introduction to the PLC control system of the molding machine in a fully automatic gummy candy production line:

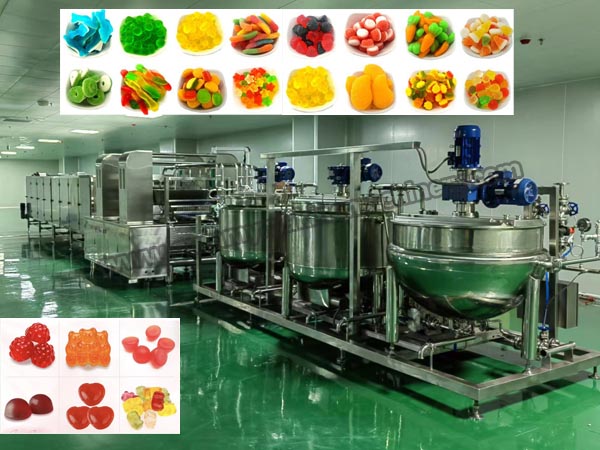

 I. Candy Production Line Equipment
The PLC control system of the pouring machine is the core of the equipment, responsible for automating and precisely controlling the pouring process. Through the PLC (Programmable Logic Controller), the system can receive and process various sensor signals, control the movements of actuators, and ensure the efficiency and accuracy of the pouring process.

II. System Composition
1. PLC Controller
Function: As the core of the control system, it is responsible for logical operations, data processing, and issuing control commands.
2. Sensor Types:
Position Sensors: Detect the positions of various components of the pouring machine, such as the tilt angle of the pouring ladle.
Level Sensors: Monitor the height of the molten metal surface to ensure accurate pouring volume.
Temperature Sensors: Detect the temperature of the molten metal to ensure pouring occurs within the appropriate temperature range.
Function: Collect data in real time and feed it back to the PLC for processing.
3. Actuators
Servo Motors and Drives: Control the tilting and movement of the ladle, enabling precise position and speed control.
Hydraulic or Pneumatic Systems: Drive valves, robotic arms, and other components to perform pouring, start/stop, and other operations.
4. Human-Machine Interface (HMI)
Equipment: Touchscreen or industrial computer.
Function: Displays equipment status, parameter settings, fault alarms, and other information. Operators can input commands and adjust parameters via the interface.
5. Communication Module
Function: Facilitates data exchange between the PLC, HMI, host computer, and other devices.
 III. Control Functions

1. Automatic Pouring Control Process:
1. The PLC receives a start signal and controls the pouring ladle to move to a designated position.
2. Based on a preset pouring curve, the PLC controls the servo motor to tilt the pouring ladle, precisely regulating pouring speed and flow rate.
3. The liquid level sensor monitors in real time, and the PLC dynamically adjusts the pouring volume to ensure pouring accuracy.

2. Parameter Setting and Adjustment
Function: Operators can set parameters such as pouring volume, pouring speed, and temperature via the HMI. The PLC automatically adjusts the actuator’s movements based on the set values.
3. Safety Protection
Function: Monitors equipment operating status, such as overload, overheating, and abnormal liquid levels. In the event of an anomaly, the PLC immediately issues an alarm signal and automatically implements protective measures, such as stopping the pour or closing valves.

4. Data Logging and Analysis
Function: Records key data during the pouring process, such as pouring time, temperature, and flow rate. Generates production reports for quality analysis and process improvement.

IV. Control Process
1. Initialization After power-up, the PLC performs a system self-test to check the status of all components. It initializes parameters and awaits a start command.
2. Pouring Preparation Upon receiving the start signal, the system controls the pouring ladle to move to the pouring position. It detects the molten metal temperature and level to confirm whether pouring conditions are met.
3. Pouring Process
Based on preset parameters, control the servo motor to tilt the ladle and begin pouring. Monitor the liquid level and temperature in real time, dynamically adjusting the pouring speed. After pouring is complete, control the ladle to return to its original position.
4. Termination and Alarms
After pouring is complete, the PLC controls the equipment to return to its initial state. If an abnormal situation occurs, immediately stop operation, issue an alarm signal, and display fault information on the HMI.
V. System Advantages
High Precision: Achieves high-precision pouring volume through precise PLC control.
High Efficiency: High degree of automation reduces manual labor and improves production efficiency.
High Reliability: Multiple safety protection measures ensure stable equipment operation.
High Flexibility: Parameters can be flexibly adjusted to adapt to different product and process requirements.

Through the above introduction, we believe you now have a deeper understanding of the PLC control system for the gummy candy pouring production line.
